A06 10ml Crystal Disposable Vape — 8000 Puffs, 1400mAh

A06 at a Glance

A06 is a single-use disposable with a 10.0ml e-liquid load and a 1400mAh battery. There is no charging port. The cell is sized to outlast the liquid, so the device is retired when the tank empties rather than when the battery gives out.

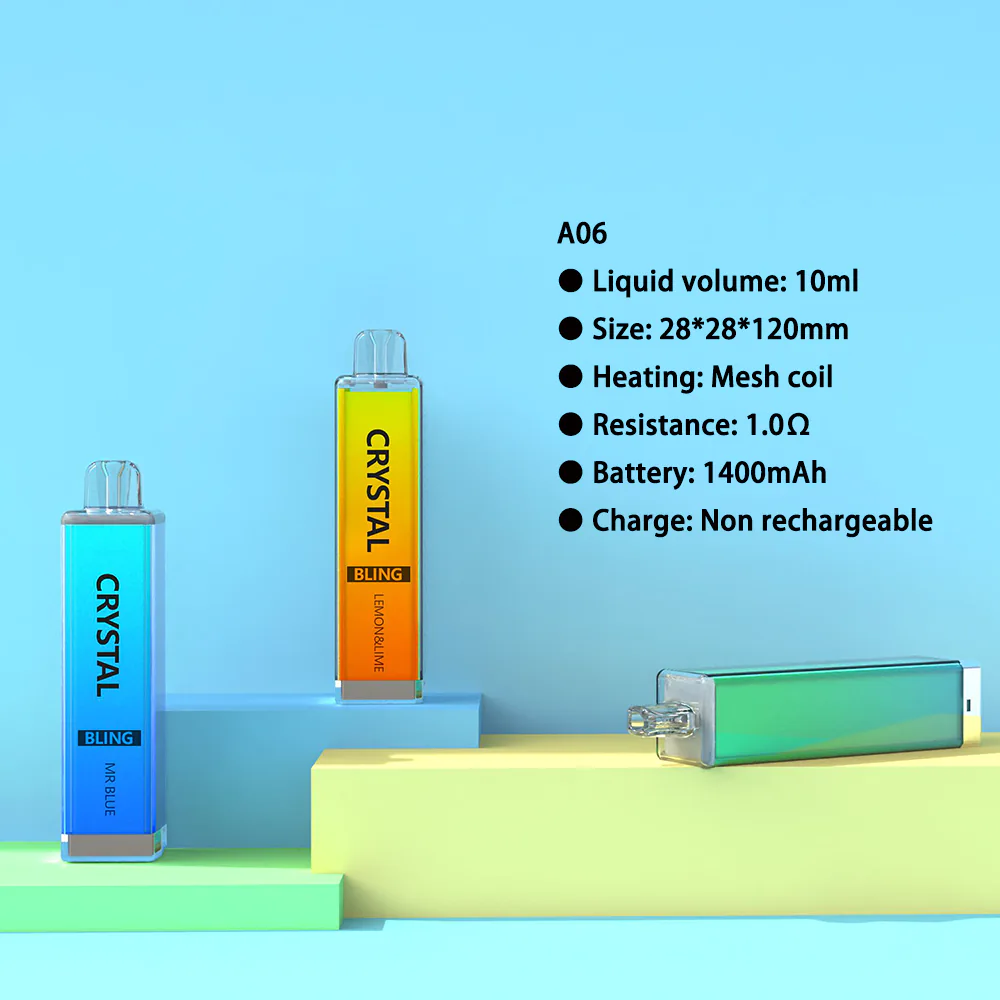

The housing is a square tube measuring 28 × 28 × 120 mm, formed in translucent crystal-finish material over a colored inner tube. A 1.0Ω mesh coil handles vaporization, and the device fires on draw.

Specifications

Why 1400mAh and No Charging Port

Most 10ml devices ship with a 500mAh cell and a Type-C port, which means the user has to charge the device two or three times before the liquid runs out. A06 takes the opposite approach: a cell large enough to cover the full 10.0ml load in one life.

That removes a whole class of after-sale problems. No cable in the box, no charging port to fail on, no support questions about why a device stopped mid-tank. For distributors selling into channels where returns are expensive to process, fewer moving parts is a commercial argument, not a technical one.

The trade-off is weight and cost per unit. A 1400mAh cell is heavier than a 500mAh cell and it prices differently. Whether that trade works depends on your channel — convenience and travel retail usually favor it, price-led shelf space usually does not.

Printing Over a Translucent Shell

The crystal shell is not a print surface in the usual sense. Artwork sits over a colored inner tube that reads through the material, so the finished look combines your graphics with whatever color sits behind them.

That changes how artwork has to be prepared. Solid fills lose density against a lit background. Fine linework and outlined shapes hold up better than large flat blocks. Colors shift depending on the inner tube behind them, so the same file produces different results across a flavor range.

Available decoration methods:

• Full-wrap printing across all four faces of the square body
• Inner tube color set per flavor, independently from the printed layer
• Gradient work, which reads well through the translucent shell
• UV printing for logo blocks, batch codes, and market-required text panels

Send artwork as vector files with Pantone references, and name the intended inner tube color for each SKU. We return a printed sample on the actual shell before the run starts, because a screen proof will not show you how the layers combine.

E-Liquid and Flavor Options

A06 ships pre-filled. E-liquid is produced under GMP- and ISO 9001-controlled processes, and the fill happens on the same line that seals the device.

You can select from a curated range of 48 flavors, or brief a custom profile against our formulation library of more than 500 flavors. Nicotine is configured to the e-liquid you choose and to the requirements of the destination market. Salt and freebase bases are both available.

Flavor development on a new profile adds time ahead of the production window. Build that into your launch calendar if the program depends on a signature blend rather than a catalog pick.

Manufacturing and Quality Control

A06 runs through a four-stage inspection chain: IQC → IPQC → FQC → OQC. Incoming cells, coils, and shell components are checked before they reach the floor. In-process checks cover fill volume, seal integrity, and draw activation.

The translucent shell adds one inspection step other housings do not need. Print registration is checked against the inner tube position, because artwork that sits correctly on a flat surface can still land off-register once the inner layer is seated.

Final inspection samples each batch for airflow consistency, battery voltage, and shell clarity. Outgoing inspection verifies carton counts, labeling, and packaging against your purchase order. Device test reports accompany each shipment.

Every unit is built to the standards of the destination market you nominate. Tell us where the goods land at the quotation stage, and the specification is configured for that market before the run starts.

Ordering A06

Hardware from 10,000 units per model, 2,000 units per color. Because inner tube color and printed artwork are set separately, a single artwork file can run across several color variants within one program.

Production runs Typically 25–30 Days after artwork approval and e-liquid sign-off. Sampling, flavor development, and printed proofs happen before that window opens, so plan your calendar backward from the on-shelf date.

Message us on WhatsApp or email your specification, and we will come back with a configuration sheet for A06 built around your market and volume.

Frequently Asked Questions

Can A06 be recharged?

No. A06 is a single-use device with no charging port. The 1400mAh cell is specified to cover the full 10.0ml liquid load in one life.

Why is the battery so much larger than on comparable 10ml devices?

Because the device does not recharge. A rechargeable 10ml platform can run a smaller cell and top up mid-tank. A06 has to carry the whole load from the start.

How does printing work on the crystal shell?

Artwork sits over a colored inner tube that reads through the translucent material. Outlined shapes and gradient work hold up better than large solid fills, and we sample on the actual shell before production.

Can the inner tube color be changed per flavor?

Yes. Inner tube color and printed artwork are specified separately, so one artwork file can carry across several color variants.

What nicotine strengths are available?

Anything from 0% to 5%. The strength is set alongside your e-liquid selection and the requirements of the market you are shipping into.

What does the first order timeline look like?

Specification and quotation, then samples, then artwork and flavor sign-off, then production at Typically 25–30 Days. The stages before production vary with how much custom work your program carries.
