IDEA051: Visible-Reservoir Pod Vape Concept with a 10ml Refill Reservoir
IDEA051 is a pod vape design concept available for OEM/ODM development through GG-VAPE. A replaceable inner pod sits inside a clear 10ml refill reservoir, so the e-liquid level stays visible from every side. The inner pod comes in two versions: 0ml nominal and 2ml.
The aluminum battery body carries a built-in 850mAh battery, a digital display, and three output modes. IDEA051 is not a stock model. Electrical specs, component interfaces, and production samples are confirmed during development. Dimensions and structure drawings go to buyers privately on request.
What the Design Includes

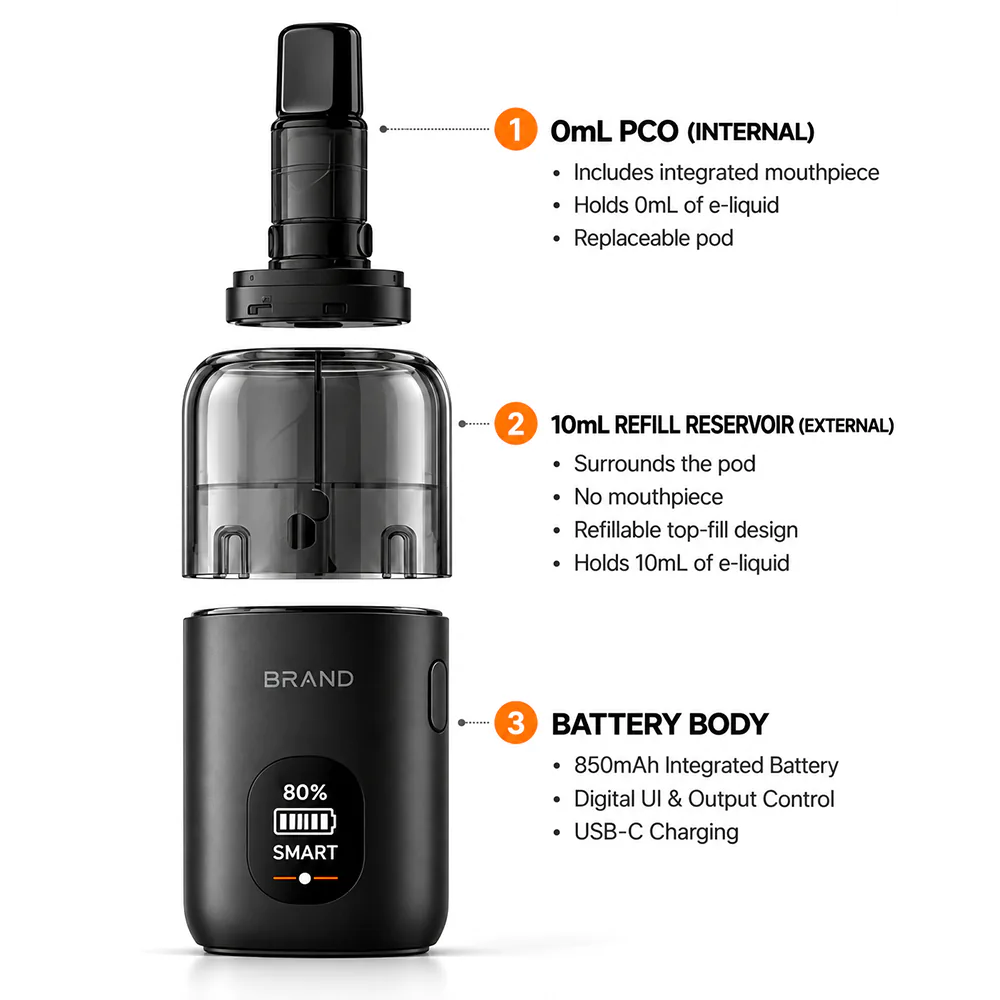

The design has three parts: an inner pod, an outer reservoir, and a battery body. The inner pod carries the mouthpiece. The reservoir surrounds it and holds 10ml.
The images show the 0+10ml version, where the e-liquid sits in the reservoir. The 2+10ml version adds 2ml of capacity inside the pod, and the reservoir refills it.
| Feature | Detail |
|---|---|
| Device type | Pod system |
| Inner pod | Replaceable, with integrated mouthpiece; 0ml nominal (shown) or 2ml |
| Refill reservoir | 10ml, clear, top-fill design |
| Total nominal capacity | 10ml (0+10ml) or 12ml (2+10ml) |
| Battery | 850mAh, built-in |
| Output modes | ECO, SMART, BOOST |
| Controls | One button to switch modes; hold 2 seconds to lock or unlock |
| Display | Battery percentage and current mode |
| Charging | USB-C, 5V/1A |
| Protection | Overcharge, short-circuit, and low-voltage protection |
| Materials | Aluminum alloy, PC, silicone |
How the Pod and Reservoir Fit Together

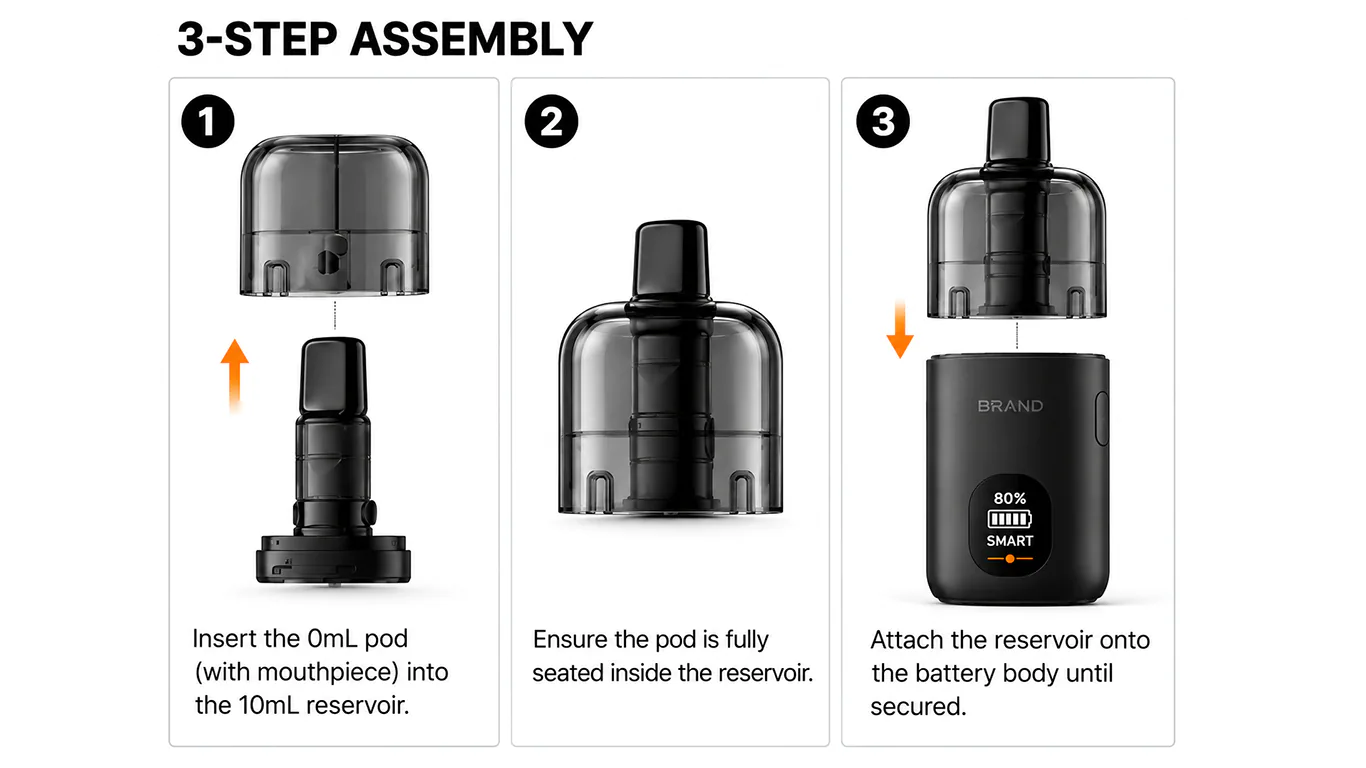

Assembly takes three steps. The inner pod goes into the reservoir and seats fully. The reservoir then attaches to the battery body until it locks in place.
The reservoir refills from the top, and the inner pod replaces separately. The battery stays built into the device. Both pod versions use the same assembly steps.
Display and Output Modes

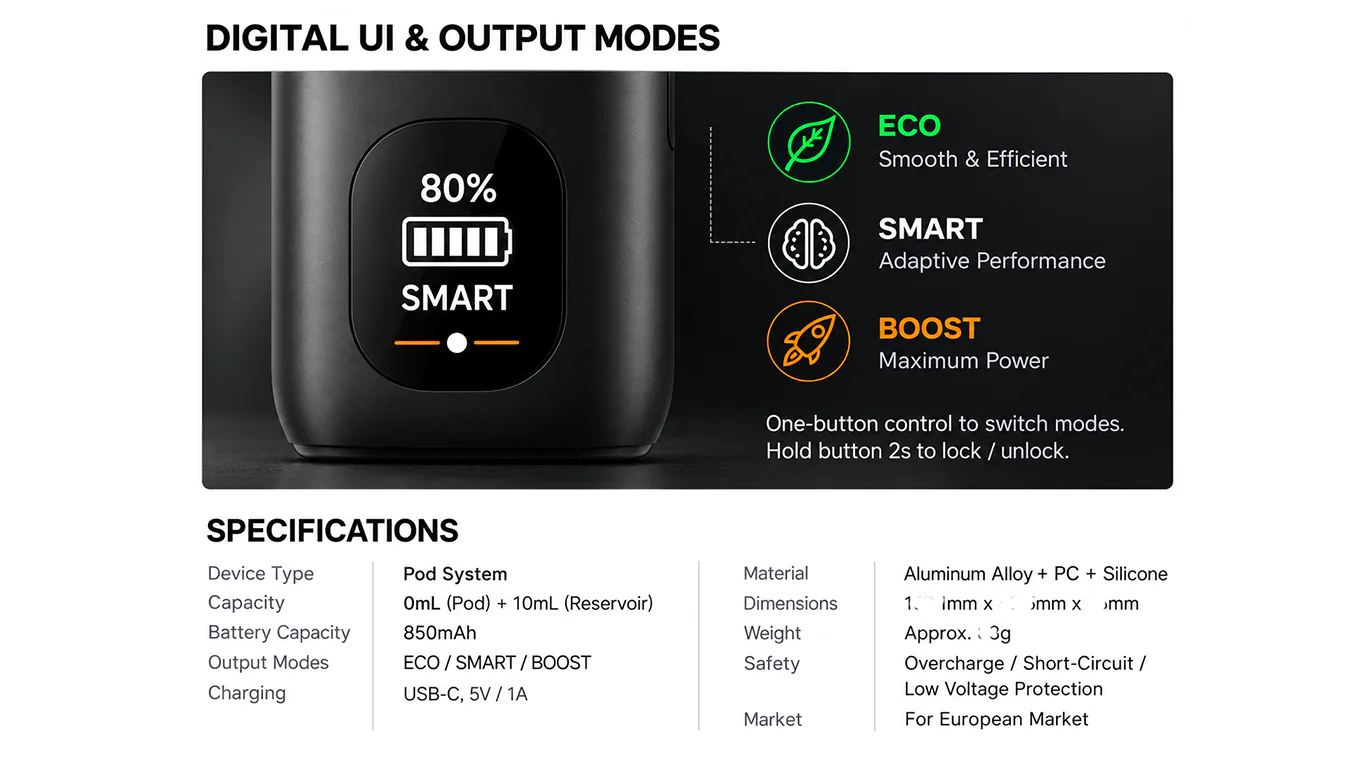

The display shows battery percentage and the active mode. One button cycles through ECO, SMART, and BOOST. Holding the button for 2 seconds locks or unlocks the device.
Output values for each mode are set during engineering, based on the coil and your flavor profile.
Sealing: The Core Engineering Task
A refill-reservoir design has one main engineering risk: the seal between the reservoir and the inner pod. Pressure changes, temperature shifts, and transport can all move liquid where it should not go.
We agree the seal and leak tests with you and run them on the functional prototype before tooling. The reservoir layout, seal geometry, and fill port are adjusted until the prototype passes. Every production batch then goes through the same agreed checks within IQC → IPQC → FQC → OQC.
What the Design Defines and Engineering Confirms
| Defined Design Features | Engineering Confirmation |
|---|---|
| Inner pod, 0ml nominal or 2ml, with integrated mouthpiece | Coil type and resistance |
| 10ml clear top-fill reservoir | Reservoir fill status, seal geometry, and liquid flow |
| Built-in 850mAh battery | Electrical specs and charging performance |
| ECO, SMART, and BOOST modes | Output values for each mode |
| Display and one-button control | Display content and control logic |
| Aluminum, PC, and silicone parts | Final dimensions and production finishes |
We build and test a functional prototype before tooling starts. The approved prototype becomes the reference for tooling and final samples.
IDEA051 OEM/ODM Customization Options
- Colors: six sample colorways shown: mint green, champagne gold, cobalt blue, coral red, lavender purple, and silver grey. Any anodized color can be matched to your brand.
- Logo: brand mark on the battery body.
- Reservoir and pod: tint, finish, and print area.
- Volumes: 0+10ml or 2+10ml, or other pod and reservoir volumes for your destination market.
- Output modes: mode names and output values set during engineering.
- E-liquid: custom flavors through our e-liquid OEM service, produced under GMP- and ISO 9001-controlled processes.
- Packaging: retail packaging, labels, instructions, and outer cartons.
Every version is built to the standards of the destination market.
EU and UK Market Planning
For EU projects, we plan around the 2+10ml version. Pod systems that pair a 2ml pod with a separate refill reservoir are already on sale in several EU markets. The importer files the notification in each member state, and the national authority reviews the reservoir design at that stage. We supply the technical documentation package for that filing.
The UK follows its own rules under the TRPR. MHRA guidance treats reservoirs above 2ml as non-compliant, so neither version with a 10ml reservoir is planned for the UK market.
Which pod version fits a given market is confirmed with you and your regulatory advisor before tooling starts.
From Concept to Mass Production
New-tooling development typically takes 60–75 days, starting after the project specs and artwork are confirmed. Mass production then runs typically 25–30 days after final approval. Neither period includes international shipping of the bulk order or notification waiting time.
1. Structural Design and Functional Prototype
We complete the structural design and build a working prototype. This stage typically takes 20–25 days, depending on design complexity.
Prototype testing covers the reservoir seal, liquid flow to the inner pod, charging, the display, and all three output modes. Tooling starts after the prototype passes the agreed tests and the buyer approves the design.
2. Tooling and Mold Adjustment
Tooling and the first round of mold adjustment take about 30 days. We inspect the first production-tool samples against the approved design and adjust where needed.
3. Final Samples and Approval
We prepare final samples for buyer approval. The rest of the development time covers sample shipping, testing, and final adjustments.
4. Mass Production and Quality Control
Mass production starts after the buyer approves the final samples, specs, branding, and packaging. Every batch passes IQC → IPQC → FQC → OQC.
Learn more about our OEM/ODM manufacturing services, including engineering development, prototyping, tooling, and production.
Related Product Formats and Design Concepts
For an existing 10ml replaceable-pod platform, see the A31 10ml replaceable pod system.
For a dual-flavor take on the 2+10ml layout, explore the IDEA007 dual-chamber pod vape concept. IDEA007 splits the e-liquid into independent left and right chambers, while IDEA051 wraps a single reservoir around one inner pod.
Browse our replaceable pod system range for more hardware options.
IDEA051 Frequently Asked Questions
What is the difference between the 0+10ml and 2+10ml versions?
Both use the same 10ml reservoir, battery body, and assembly steps. In the 0+10ml version, the inner pod holds no measured e-liquid, and the liquid sits in the reservoir. In the 2+10ml version, the inner pod holds 2ml, and the reservoir refills it.
Can IDEA051 be planned for EU projects?
Yes, based on the 2+10ml version. Pod systems with a 2ml pod and a separate refill reservoir are on sale in several EU markets. The importer handles notification in each member state, and we supply the technical documentation. Neither 10ml reservoir version is planned for the UK, where MHRA guidance treats reservoirs above 2ml as non-compliant.
Is the IDEA051 battery removable?
No. IDEA051 uses a built-in 850mAh battery with USB-C charging at 5V/1A. It includes overcharge, short-circuit, and low-voltage protection.
What do the ECO, SMART, and BOOST modes change?
Each mode sets a different output level. One button switches between them, and a 2-second hold locks or unlocks the device. We set the output values during engineering.
Is IDEA051 available as a stock product?
No. IDEA051 is available for OEM/ODM development. We complete structural engineering, functional prototyping, tooling, testing, and final sample approval before mass production.
